Whirlpool Washer F21 Error Code — Causes and Step-by-Step Fix

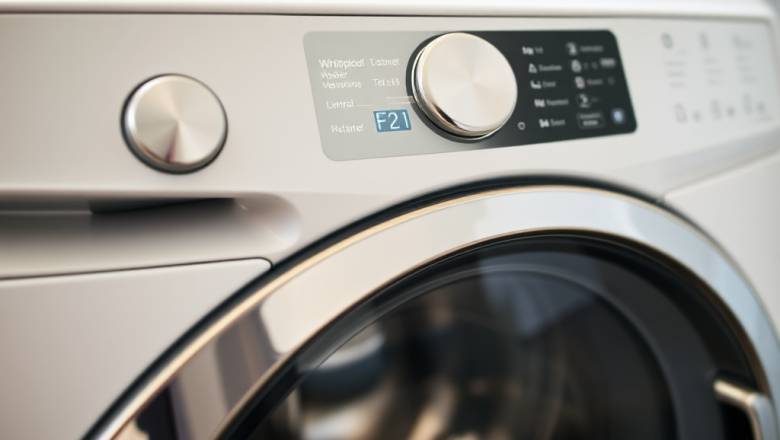

If your Whirlpool front-load washer is flashing the F21 error code, the machine is telling you it cannot drain the water from the tub within its expected time limit. This is one of the most frequently reported error codes on Whirlpool Duet and newer front-load models, and the good news is that the majority of cases can be resolved without a service technician.

This guide walks you through exactly what the F21 code means, every possible cause ranked by likelihood, a complete step-by-step repair process, and when it makes sense to call in a professional. Whether you have a Whirlpool Duet WFW9150WW or a newer WFW5620HW, the diagnostic process is the same. 205

What Does F21 Mean on a Whirlpool Washer?

The F21 error code on a Whirlpool washing machine stands for "Long Drain" — the control board has detected that the tub has not emptied within approximately 8 minutes after the drain pump was activated. On some models, you may also see this displayed as F21 E01 or simply a flashing drain indicator.

Technically, the main control board sends voltage to the drain pump motor and simultaneously monitors the water level pressure switch (also called a pressure transducer on newer models). If the pressure switch continues to detect water in the tub after the 8-minute timeout, the control board stores the F21 fault code, halts the cycle, and locks the door to prevent flooding if you open it while water remains inside.

It's important to distinguish F21 from related codes:

• F21 — Water is present but not draining (pump may be running but water isn't moving)
• F02 — Long drain on older Whirlpool Duet models (same root cause, older software)
• F9 E1 — Long drain on Whirlpool models with the new W10 control platform

All three codes point to the same drainage system, but F21 is specific to models manufactured between 2006 and 2019 running the Central Control Unit (CCU) with the 8-minute drain timer algorithm. 206

Common Causes of the Whirlpool Washer F21 Error

Based on repair data and technician reports, here are the causes of the F21 error ranked by frequency:

1. Clogged Drain Pump Filter — 45% of Cases

The drain pump filter (also called the coin trap) sits at the front-bottom of the washer behind a small access panel. Over time, coins, hair ties, fabric fibers, small socks, and debris accumulate here and restrict water flow. Whirlpool recommends cleaning this filter every 30 days, but most owners don't know it exists.

The filter is accessed by removing the lower front panel (held by clips or screws depending on model) and turning the filter cap counterclockwise (part reference: W10536347 for the filter access assembly).

2. Kinked or Clogged Drain Hose — 20% of Cases

The corrugated drain hose runs from the back of the washer to your home's standpipe or utility sink. If the washer was recently moved, installed, or if the hose has deteriorated, it can develop kinks that restrict flow. Additionally, soap residue and lint can build up inside the hose over years of use, gradually narrowing the internal diameter.

3. Excess Suds from Non-HE Detergent — 15% of Cases

Whirlpool front-load washers require HE (High Efficiency) detergent. Regular detergent produces excessive suds that the drain pump struggles to evacuate. The air pockets in suds prevent the pump impeller from creating proper suction. This often triggers F21 alongside the Sd (suds detected) code.

Recommended article

Whirlpool Cabrio Washer F51 Error — Causes and Fix

Washer

Pro Tip: If you see both Sd and F21 codes in the same cycle, the suds problem is almost certainly your culprit. Run a clean cycle with no detergent and hot water to clear the residue.

4. Failed Drain Pump Motor — 12% of Cases

The drain pump (Whirlpool part W10130913) is an electrically driven impeller pump. After 5–8 years of daily use, the motor windings can fail, or the impeller shaft bearing can seize. Signs of a failed pump include: no humming sound during drain, a loud grinding noise, or the pump runs but no water moves.

5. Pressure Switch / Transducer Fault — 5% of Cases

The pressure switch tells the control board how much water is in the tub. If this switch is stuck or sending incorrect signals, the board may believe there's still water in the tub even after successful draining. This is a less common but tricky diagnosis because the tub may actually be empty.

6. Control Board (CCU) Failure — 3% of Cases

In rare instances, the Central Control Unit itself fails to send proper voltage to the drain pump or misreads the pressure switch signal. This is the most expensive fix and should only be considered after all other causes are eliminated. 207

How to Fix the Whirlpool Washer F21 Error — Step by Step

Follow these steps in order from most likely to least likely cause. Always unplug the washer before accessing internal components.

Step 1: Emergency Drain (If Tub Is Full)

1. Place towels on the floor in front of the washer
2. Locate the small drain hose next to the filter cap behind the lower front panel
3. Place a shallow pan or bowl under the hose
4. Slowly remove the cap from the emergency drain hose and let water drain into the pan
5. Empty the pan as needed — a full tub holds 10–15 gallons

Step 2: Clean the Drain Pump Filter

1. With the tub emptied, turn the drain pump filter cap (large round cap) counterclockwise
2. Pull the filter out slowly — more residual water will come out
3. Remove all debris: coins, hair ties, lint buildup, small fabric items
4. Inspect the filter housing cavity — use a flashlight to check for items lodged deeper
5. Reach in and verify the pump impeller spins freely by rotating it with your finger
6. Replace the filter, turn clockwise until snug

Step 3: Check the Drain Hose

1. Pull the washer forward to access the back
2. Inspect the drain hose from the pump to the standpipe for kinks
3. Disconnect the hose from the standpipe and check for internal blockage
4. Run water through the hose to verify flow is unrestricted
5. Ensure the hose end sits no more than 96 inches above floor level (Whirlpool max height spec)

Step 4: Verify HE Detergent Use

1. Check your detergent bottle for the HE symbol (a lowercase "h" and "e" inside a circle of dots)
2. If using non-HE detergent, switch immediately
3. Run an empty hot cycle with no detergent to flush residual suds
4. Consider running Whirlpool's Affresh washer cleaner cycle monthly

Step 5: Test the Drain Pump Motor

1. Unplug the washer and access the drain pump (behind the lower front panel)
2. Disconnect the pump's electrical connector
3. Using a multimeter, test resistance across the pump motor terminals — expect 5–15 ohms
4. If open circuit (OL) or significantly outside range, the pump motor has failed
5. Order replacement pump: Whirlpool part W10130913 (approximately $25–$45)

Step 6: Inspect the Pressure Switch

1. Locate the pressure switch — typically at the top rear of the washer frame
2. Check the small rubber hose connecting the switch to the outer tub for cracks, kinks, or water intrusion
3. Disconnect the hose from the switch and blow gently — you should feel no restriction
4. If the hose is clear and the switch still triggers F21 with an empty tub, replace the pressure switch

Step 7: Reset and Test

1. Plug the washer back in
2. Press and hold the "Drain/Spin" or "Rinse/Spin" button to run a drain-only cycle
3. Observe: pump should hum, water should flow out, and the cycle should complete without F21 reappearing
4. If F21 returns despite all checks, the control board (CCU) may need replacement

When to Call a Professional

While most F21 errors can be resolved with DIY filter cleaning, certain situations warrant professional help:

• The drain pump motor has failed — While the part is affordable, accessing and replacing it requires removing hose clamps and electrical connections in a tight space
• The control board is suspected — Misdiagnosing a CCU issue can mean spending $150–$250 on an unnecessary board
• Water damage risk — If the washer has leaked significantly or you're unable to drain the tub safely
• Warranty coverage — If your Whirlpool washer is under the 1-year full warranty or an extended service plan

Average Repair Costs: Professional drain pump replacement runs $150–$250 (parts + labor). Filter cleaning service calls average $89–$129. Control board replacement costs $250–$400 installed.

If you're experiencing recurring drainage issues, you may also want to check our guide on Whirlpool Oven F2 Error Code for understanding how Whirlpool's error code system works across their appliance lines. 209

Preventing Future F21 Errors

Regular maintenance can prevent the vast majority of F21 occurrences. Follow this schedule:

Monthly Maintenance

• Clean the drain pump filter — remove the lower panel, unscrew the filter cap, clear all debris
• Check pockets before loading laundry — coins, bobby pins, and small items are the #1 filter-clogger
• Run a clean washer cycle (Affresh tablet or 1 cup white vinegar in an empty hot cycle)

Quarterly Maintenance

• Inspect the drain hose at both ends for kink damage or buildup
• Verify the standpipe connection isn't blocked by lint or sediment
• Clean the door gasket folds where debris collects and eventually migrates to the pump

Annual Maintenance

• Disconnect and flush the entire drain hose with hot water and vinegar solution
• Inspect the drain hose for cracks, deterioration, or internal narrowing
• Consider replacing the drain hose if it's more than 5 years old

Detergent Best Practices

• Always use HE-certified detergent — look for the HE symbol on the label
• Use the manufacturer-recommended amount (usually 1–2 tablespoons for a standard load)
• Avoid liquid fabric softener in the drum — it contributes to pump filter buildup
• Consider detergent pods which pre-measure the correct HE amount

Whirlpool Washer Models Commonly Affected by F21 Error

The F21 error code appears on Whirlpool front-load washers that use the Central Control Unit (CCU) drain timer system. Here are the most commonly affected models and their relevant replacement part numbers:

Model NumberSeriesDrain Pump PartFilter Access Part
WFW9150WWDuetW10130913W10536347
WFW94HEXWDuet SteamW10130913W10536347
WFW72HEDWDuetW10130913W10536347
WFW5620HW4.5 cu.ft Front LoadW10130913W10536347
WFW6620HW4.5 cu.ft Front LoadW10130913W10536347

All models listed above share the same drain pump assembly (W10130913) and filter access design (W10536347). When ordering parts, always verify your specific model number on the rating plate inside the door frame or on the back panel.

Important: Models with "HE" in the model number (like WFW94HEXW) were among the first to use the 8-minute drain timer that triggers F21. Earlier Whirlpool Duet models (WFW8300SW series) use the F02 code for the same condition. 211
