Whirlpool Cabrio Washer F51 Error — Causes and Fix

What Does the F51 Error Code Mean?

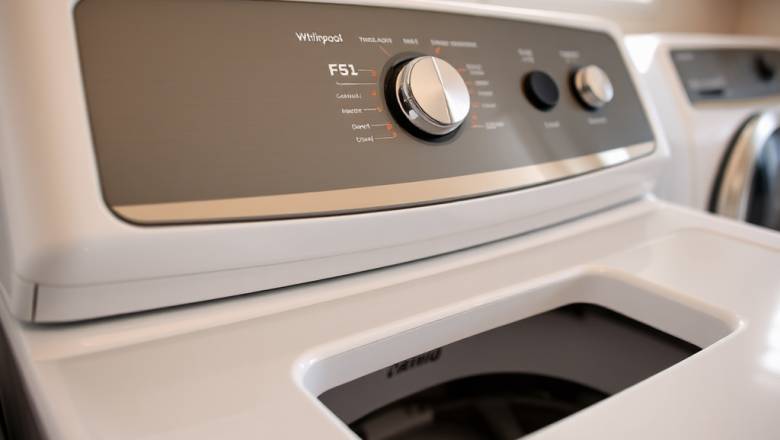

The F51 error code on a Whirlpool Cabrio washer signals a motor rotor position sensor (RPS) failure. The control board relies on the RPS to confirm the wash basket is spinning at the correct speed. When the sensor stops sending accurate data, the washer halts mid-cycle and displays F51.

This code appears exclusively on Whirlpool Cabrio and Maytag Bravos top-load washers that use a direct-drive motor system. The error typically triggers during the spin cycle when the motor reaches higher RPMs.

RPS sensor failure accounts for 55% of F51 cases. Items lodged between tubs cause 25%. Wiring harness damage accounts for 15%. Control board failure is rare at 5%.

The good news: most F51 repairs are DIY-friendly and cost between $35–$100 in parts, compared to $150–$300 for a service call. 270

Common Causes of the F51 Error

1. Failed Rotor Position Sensor (RPS)

The RPS is a small magnetic sensor mounted on the stator assembly beneath the tub. It reads the position of magnets embedded in the rotor to track rotation speed. Over time, the sensor's internal components degrade from heat and vibration.

Symptoms of RPS failure:

• F51 appears consistently at the same point in the spin cycle
• The basket stops spinning but the washer doesn't drain
• Error returns immediately after reset

2. Objects Lodged Between Inner and Outer Tub

Small items — coins, bobby pins, bra underwires, or children's socks — can slip between the inner basket and the outer tub. When these objects wedge against the basket, they physically prevent rotation. The RPS detects the stall and reports F51.

How to check: Remove the inner basket (requires a spanner wrench or 7/16" socket on the hub bolt) and inspect the space between tubs. Flashlight recommended.

3. Damaged Wiring Harness

The wiring between the RPS and the main control board runs along the bottom of the washer. Vibration over years can chafe the insulation or loosen connector pins. A damaged wire creates intermittent signal loss.

Recommended article

Whirlpool Washer F21 Error Code — Causes and Step-by-Step Fix

Washer

Indicator: F51 appears randomly rather than at a consistent cycle point.

4. Overloaded Drum

An excessively heavy or unbalanced load strains the motor. The RPS reads abnormal rotation patterns and triggers F51 as a protective measure. This is the easiest cause to rule out — simply reduce the load and restart.

5. Failed Control Board (Rare)

In approximately 5% of cases, the main electronic control board itself has a damaged RPS input circuit. This typically occurs after a power surge. If you've replaced the RPS and verified wiring without resolving the error, the control board is the remaining suspect. 271

How to Fix the F51 Error — Step by Step

Step 1: Reset and Test with Reduced Load

Unplug the washer for 60 seconds, then plug it back in. Remove about half the laundry to reduce load weight. Run a new cycle. If F51 doesn't return, the cause was overloading — no repair needed.

Step 2: Run Diagnostic Mode

To enter diagnostics on a Whirlpool Cabrio:

1. Turn the dial to the 12 o'clock position (Normal cycle)
2. Turn the dial: 3 clicks right, 1 click left, 1 click right
3. All LEDs should illuminate — you're in diagnostic mode
4. Turn the dial to the spin test and press Start

If F51 reappears during the spin test with an empty drum, the problem is mechanical or electrical, not load-related.

Step 3: Inspect for Lodged Objects

1. Disconnect power and water supply
2. Remove the fabric softener dispenser cup
3. Remove the hub bolt (7/16" socket or spanner wrench)
4. Lift the inner basket straight up and out
5. Use a flashlight to check the outer tub walls and bottom for foreign objects
6. Remove any debris found
7. Reassemble in reverse order

Step 4: Test the RPS Sensor

1. Disconnect the washer from power
2. Lay the washer on its side (protect the floor with a towel)
3. Locate the stator assembly on the bottom — it's the large circular piece with coils
4. The RPS is the small black sensor with a 3-pin connector attached to the stator
5. Disconnect the RPS harness connector
6. Using a multimeter set to resistance (ohms), test between the outer two pins
7. A healthy RPS reads between 400–1,600 ohms
8. If you read 0 (short) or OL/infinity (open), the RPS is defective

Expected RPS resistance: 400–1,600 ohms. Replacement part: W10178988 or W10183157 (updated kit). Part cost: approximately $34. Typical DIY repair time: 30–45 minutes.

Recommended article

Whirlpool Washer F21 Error Code — Causes and Step-by-Step Fix

Washer

Step 5: Replace the RPS Sensor

1. Order part number WPW10178988 or the updated kit W10183157
2. Disconnect power and lay the washer on its side
3. Unclip the old RPS from the stator mount
4. Disconnect the wiring harness
5. Clip the new RPS into position
6. Connect the wiring harness — ensure the connector clicks firmly
7. Stand the washer upright, reconnect power
8. Run a diagnostic spin test to confirm the fix

Step 6: Check the Wiring Harness (if RPS tests good)

If the RPS resistance is within range, trace the wiring harness from the sensor connector up to the main control board. Look for:

• Chafed or frayed insulation
• Loose connector pins at either end
• Burn marks indicating a short

Repair damaged wires with heat-shrink tubing and solder. Replace frayed sections entirely. 272

When to Call a Professional

Call a certified technician if:

• You've replaced the RPS sensor and verified wiring, but F51 persists — the control board likely needs replacement ($180–$250 for part plus labor)
• You're uncomfortable laying the washer on its side or working with electrical connections
• The washer is still under manufacturer warranty (Whirlpool offers 1 year parts/labor standard)
• You smell burning or see scorch marks on the stator assembly — this indicates motor damage beyond a simple sensor swap

Professional repair cost for F51: $150–$300 including parts and labor. Average service call diagnostic fee: $89–$120, often waived if you proceed with repair. 273

Estimated Repair Cost

Here's what you can expect to spend depending on the root cause:

RepairPart CostDIY TotalPro Total
RPS sensor replacement$34$34$150–$200
Lodged object removal$0$0$89–$120
Wiring harness repair$5–$15$5–$15$120–$180
Control board replacement$180–$250$180–$250$280–$400

For the most common fix (RPS sensor), you're looking at about $34 and 45 minutes if you do it yourself — one of the most affordable washer repairs possible. 274

Preventing the F51 Error

Reduce the risk of a repeat F51 occurrence with these habits:

• Check pockets before loading — coins and small objects are the #1 preventable cause of items lodging between tubs
• Don't overload — Whirlpool Cabrio washers have a maximum capacity, but large items like comforters can still unbalance the drum at high spin speeds
• Use a surge protector — power surges can damage both the RPS and control board over time
• Distribute loads evenly — avoid washing a single heavy item alone; pair it with a few lighter pieces for balance

If you're seeing the Whirlpool washer F21 error alongside F51, you may have a combined drainage and motor issue that requires professional diagnosis. 275
